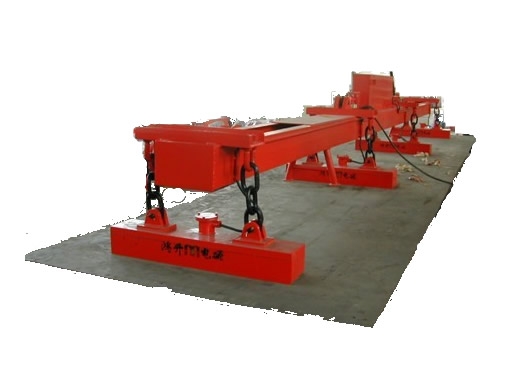

LEP series permanent magnet electromagnet for lifting
Product features LEP series electrically controlled lifting permanent magnet is our company in the absorption of foreign technology on the basis of high-tech permanent magnet materials developed new products. Only in the suction, discharge instantaneous power, and in the lifting process by magnetic steel to be adsorbed, the adsorption time, theoretically speaking, is infinite, so the safety. There is no need to worry about unexpected power outages, and there is no need to worry about unforeseeable electrical failure resulting in the drop of the sucked material resulting in personnel or equipment damage. Therefore, in the need to ensure the safety of personnel and equipment, permanent magnet electromagnet is very appropriate, with general lifting electromagnet incomparable advantages. LEP series electrically controlled crane electric permanent magnet because of eliminating the heavy and cumbersome power outage magnetic protection device, so not only greatly reduce the weight of the equipment is more conducive to the installation conditions of the driving, reduce the driving load, but also makes the use, maintenance becomes very convenient and simple. General lifting electromagnet must always be energized in the lifting process, so the energy consumption is large, and the permanent magnet electromagnet only in the suction and discharge moment, the time is only about 1 second, so the energy consumption is very low, only about 5% of the general lifting electromagnet. Therefore, in the transmission line can not reach the field, the general lifting electromagnetic can do nothing, and permanent magnet electromagnet can use batteries to work normally. Main features: 1, theoretically ensure the reliability of the actual use, long service life; 2, simple and reasonable structure, light weight, suction and lifting capacity, use, maintenance is very convenient; 3, low energy consumption, compared with similar lifting electromagnet, energy saving more than 95%; 4, high temperature type can be used below 500℃. Scope of application: 1. Suitable type of steel for lifting: A) sheet steel with thickness greater than 6mm (with thickness less than 6mm, special design is required); B) all kinds of square billets, slabs and large channel steel, I steel, etc.; C) all kinds of large steel ingot with flat surface; D) scrap steel (not recommended). 2, applicable temperature: A) Normal temperature type, the service temperature is not greater than 80℃; B) High temperature type, the operating temperature is not greater than 500℃. 3. Use place: indoor and outdoor. 4. Several forms of matching with power supply: A) Used together with the electric control cabinet, suitable for lifting steel plates, billets and steel ingot in steel mills, shipyards and machinery factories; B) Used together with batteries, it is suitable for lifting steel plates and scrap steel in places where transmission lines are difficult to reach, such as steel gripping machines, truck cranes and ships.
Product features
LEP series electrically controlled lifting permanent magnet is our company in the absorption of foreign technology on the basis of high-tech permanent magnet materials developed new products. Only in the suction, discharge instantaneous power, and in the lifting process by magnetic steel to be adsorbed, the adsorption time, theoretically speaking, is infinite, so the safety. There is no need to worry about unexpected power outages, and there is no need to worry about unforeseeable electrical failure resulting in the drop of the sucked material resulting in personnel or equipment damage. Therefore, in the need to ensure the safety of personnel and equipment, permanent magnet electromagnet is very appropriate, with general lifting electromagnet incomparable advantages.
LEP series electrically controlled crane electric permanent magnet because of eliminating the heavy and cumbersome power outage magnetic protection device, so not only greatly reduce the weight of the equipment is more conducive to the installation conditions of the driving, reduce the driving load, but also makes the use, maintenance becomes very convenient and simple.
General lifting electromagnet must always be energized in the lifting process, so the energy consumption is large, and the permanent magnet electromagnet only in the suction and discharge moment, the time is only about 1 second, so the energy consumption is very low, only about 5% of the general lifting electromagnet. Therefore, in the transmission line can not reach the field, the general lifting electromagnetic can do nothing, and permanent magnet electromagnet can use batteries to work normally.
Main features:
1, theoretically ensure the reliability of the actual use, long service life;
2, simple and reasonable structure, light weight, suction and lifting capacity, use, maintenance is very convenient;
3, low energy consumption, compared with similar lifting electromagnet, energy saving more than 95%;
4, high temperature type can be used below 500℃.
Scope of application:
1. Suitable type of steel for lifting:
A) sheet steel with thickness greater than 6mm (with thickness less than 6mm, special design is required);
B) all kinds of square billets, slabs and large channel steel, I steel, etc.;
C) all kinds of large steel ingot with flat surface;
D) scrap steel (not recommended).
2, applicable temperature:
A) Normal temperature type, the service temperature is not greater than 80℃;
B) High temperature type, the operating temperature is not greater than 500℃.
3. Use place: indoor and outdoor.
4. Several forms of matching with power supply:
A) Used together with the electric control cabinet, suitable for lifting steel plates, billets and steel ingot in steel mills, shipyards and machinery factories;
B) Used together with batteries, it is suitable for lifting steel plates and scrap steel in places where transmission lines are difficult to reach, such as steel gripping machines, truck cranes and ships.
