Product details Overview: this machine is a cylinder-shaped external filter vacuum permanent magnet filter with upper feeding, mainly suitable for dewatering coarse particles and strong magnetic materials. Inside the cylinder containing strontium ferrite magnetic, magnetic particles can quickly adsorbed to the surface of a filter cloth, magnetic filter is mainly used for strong magnetic mineral granularity coarser concentrate slurry dewatering, because it is the upper feeding, makes the filter cake of the concentrate by particle size in a layered effect is more apparent, when magnetic concentrate form a filter cake, at the same time by the effect of gravity and magnetic particles, Coarse particle concentration is faster than to the filter cloth of fine particles concentrate movement, fine grain filter cloth first contact, therefore, the permeability of filter cake is good, and the magnetic particles in the pulp under the magnetic force attracting radiated throughout the cylinder surface, and the result of the magnetic system of sex change magnetic stirring effect, this would be a favorable conditions of filter cake is easy to dehydration, makes the filter cake thickness and permeability is good, significantly improve the productivity, Compared with the tubular vacuum filter of the same specification, its efficiency is increased more than three times. The specific magnetization coefficient of solid particles in the pulp of this machine is not less than 3000* 10-6cm/g, and the particle size is 0.15-0.8mm. Feed concentration 60%.
Technical parameters

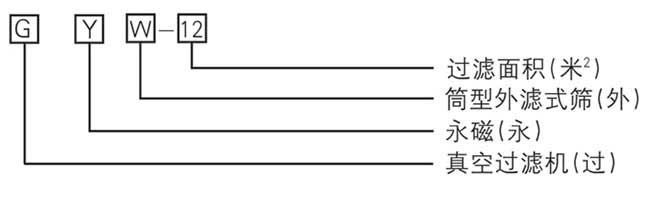

model
GYW-3
GYW-5
GYW-8
GYW-12
GYW-20
Filter area(m2)
3
5
8
12
20
cylinder
The diameter of(mm)
1600
2000
1600
2000
2250
length(mm)
700
900
1400
2000
2650
speed(R/min)
0.5～2.0
Required vacuum(KPa)
60～80
Swept volume(m3/min.m2)
0.5～2.0
Blast pressure is required(KPa)
10～30
Blast volume(m3/min.m2)
0.1～0.5
Magnetic induction intensity on cylinder surface(mT)
Product details
Overview: this machine is a cylinder-shaped external filter vacuum permanent magnet filter with upper feeding, mainly suitable for dewatering coarse particles and strong magnetic materials.
Inside the cylinder containing strontium ferrite magnetic, magnetic particles can quickly adsorbed to the surface of a filter cloth, magnetic filter is mainly used for strong magnetic mineral granularity coarser concentrate slurry dewatering, because it is the upper feeding, makes the filter cake of the concentrate by particle size in a layered effect is more apparent, when magnetic concentrate form a filter cake, at the same time by the effect of gravity and magnetic particles, Coarse particle concentration is faster than to the filter cloth of fine particles concentrate movement, fine grain filter cloth first contact, therefore, the permeability of filter cake is good, and the magnetic particles in the pulp under the magnetic force attracting radiated throughout the cylinder surface, and the result of the magnetic system of sex change magnetic stirring effect, this would be a favorable conditions of filter cake is easy to dehydration, makes the filter cake thickness and permeability is good, significantly improve the productivity, Compared with the tubular vacuum filter of the same specification, its efficiency is increased more than three times.
The specific magnetization coefficient of solid particles in the pulp of this machine is not less than 3000* 10-6cm/g, and the particle size is 0.15-0.8mm. Feed concentration 60%.
Technical parameters
