MW16, MW26, MW36 series hoisting steel belt coil electromagnet

MW16, MW26, MW36 series hoisting steel belt coil electromagnet

Details :

MW16, MW26, MW36 series hoisting steel belt coil electromagnet

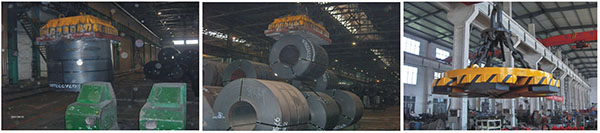

This kind of product is suitable for suction and lifting steel belt. It is divided into vertical lifting type, horizontal lifting type and general type (both vertical lifting and horizontal lifting). High temperature special type electromagnet is specially used in the new annealing process of coil plate, can work in the high temperature of 100℃-600℃, can be vertical or horizontal lifting coil plate, this kind of electromagnet mostly adopts the movable magnetic pole structure.
1. Vertical lifting type - the electromagnet absorbs the end face of the coil plate. Suitable for lifting baled or unbaled coil.
2. Horizontal lifting type - the electromagnet absorbs the large side of the coil, and the coil must be rolled.
